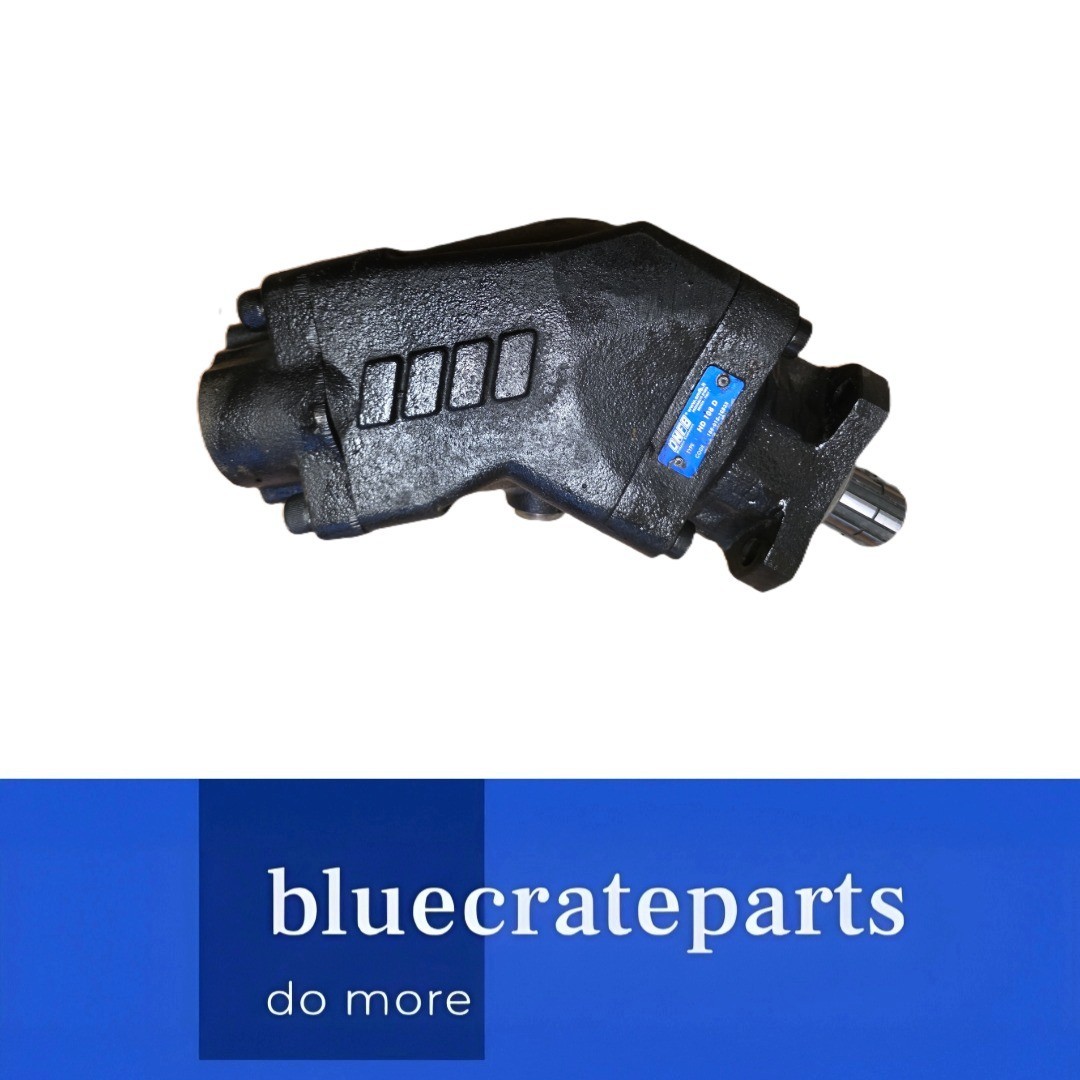

OMFB HD 108 D Bent Axis Hydraulic Pump – tipping applications for trucks

£469.00
🔒 Safe & Secure Checkout
Visa Mastercard PayPal

Premium Quality OMFB HD 108 D Bent Axis Hydraulic Pump. T echnical specifications for the OMFB HDS 108D bent-axis piston hydraulic pump (Code: 108-015-10833 or 60100111083) The installation and mounting of the OMFB HDS 108D (Code: 108-015-10833) follow standard ISO specifications for heavy vehicle power take-off (PTO) applications.

1 in stock

SKU: 326914096608
Category:
Tags: , , , ,

Description

Premium Quality OMFB HD 108 D Bent Axis Hydraulic Pump. RRP 800£ + VAT!

Technical specifications for the OMFB HDS 108D bent-axis piston hydraulic pump (Code: 108-015-10833 or 60100111083):
General Specifications
  • Pump Type: Bent-axis constant displacement piston pump.
  • Displacement: 107 cc/rev (cm³/revolution or L/1000 RPM).
  • Rotation: Right (Clockwise, indicated by the “D” in the model name).
  • Body: Compact size cast iron body designed for high resistance to pressure peaks.
  • Weight: Approximately 19.33 kg.
Performance Data
Maximum Continuous Pressure350 bar
Maximum Peak Pressure400 bar
Maximum Continuous Speed1700 rpm
Maximum Rotation Speed (with load)1500 rpm
Maximum Intermittent Speed2500 rpm
Inlet Port (Suction)G 1-1/2″
Outlet Port (Pressure)

Hydraulic Fluid and Environmental Limits
  • Operating Temperature Range: -40°C to +140°C, thanks to FKM and reinforced oil-seals.
  • Recommended Viscosity: Optimal kinematic viscosity of VG 10 cSt to 100 cSt, with suggested oil types like VG 32 or VG 46 depending on ambient temperature.
  • Oil Filtering: > 200 bar: 10 µm; < 200 bar: 25 µm.
The installation and mounting of the OMFB HDS 108D (Code: 108-015-10833) follow standard ISO specifications for heavy vehicle power take-off (PTO) applications.
Installation & Mounting Specifications
  • Mounting Standard: It uses the ISO 7653 standard 4-hole flange.
  • Flange Dimensions: The mounting holes are arranged with a center distance of 80 mm.
  • Shaft Type: The drive shaft is a DIN 5462 standard splined output shaft, designed for high torque resistance.
  • Shaft Dimensions: The specific dimensions for the splined shaft are 8x32x36.
  • Mounting Position: Bent-axis pumps can generally be mounted in any position (vertical or horizontal), provided the hydraulic fluid system allows proper lubrication and air bleeding.
Free postage for UK Mainland only! For other regions please contact for a quote!
Please note that recycled packaging boxes and materials may be used when shipping, in order to keep the our environment green!

G 1″
