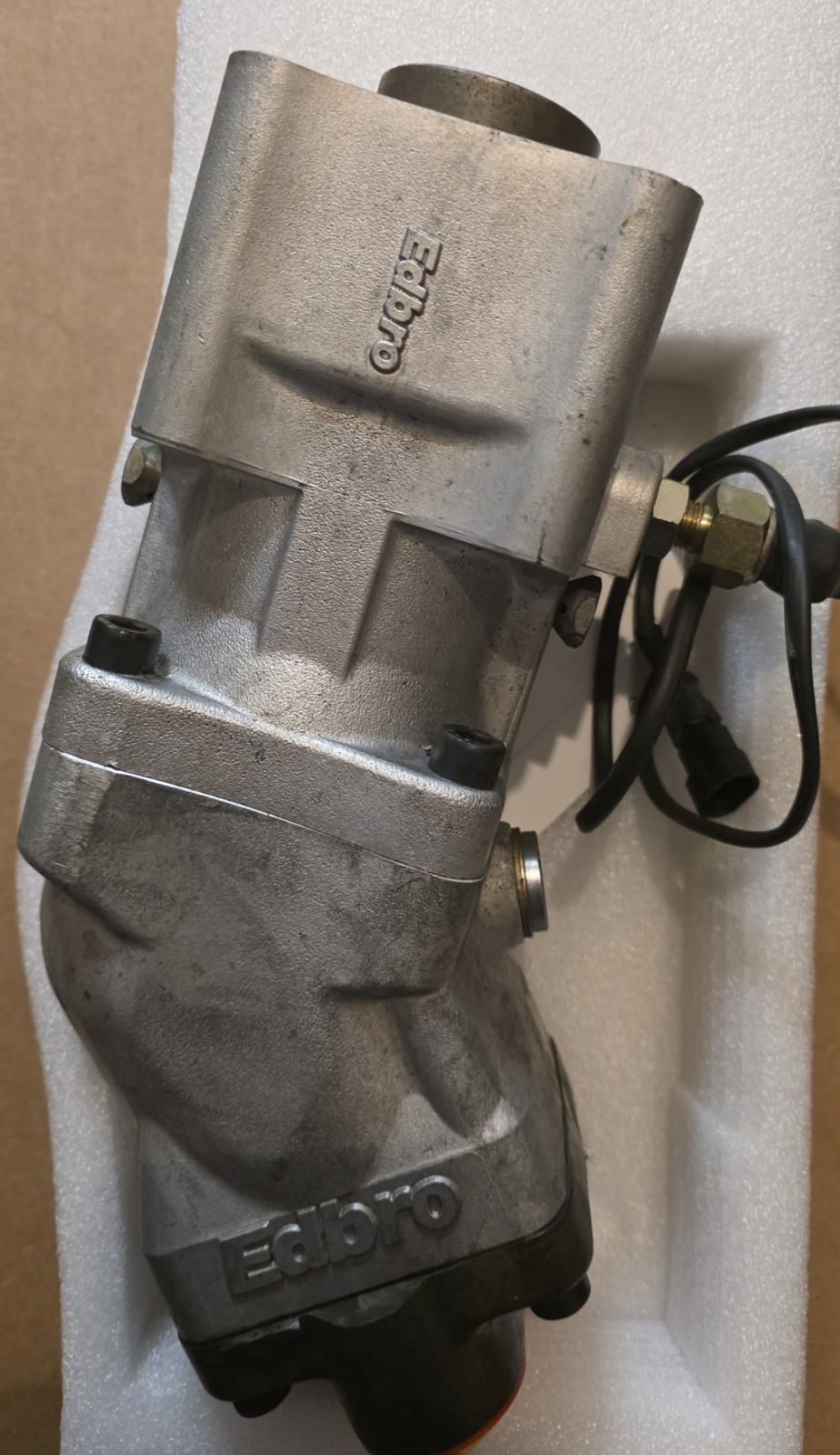

High quality EDBRO PBA101090 22 Bent Axis Hydraulic Pump – unused.
Edbro PBA101090 is a 90cc hydraulic pump, especially for tipper truck wet kit applications. Here are the key features and specifications based on manufacturer and technical catalogue data:
Edbro PBA101090 Hydraulic Pump – Key Specs and Features:
- Type: Hydraulic piston or gear pump for tipper truck hydraulic systems
- Displacement: 90 cc/revolution
- Max Working Pressure: 300 bar (common industrial setting)
- Rotation: Usually available in both clockwise (right) and bi-directional variants
- Mounting Flange: ISO 7653 4-hole, 80 mm
- Pump Shaft: DIN 5462 8x32x36 (standard for tipper/truck PTO interface)
- Oil Flow (at pump speed):
- 500 rpm: ~45 l/min
- 1000 rpm: ~90 l/min
- 1500 rpm: ~135 l/min
- Max Continuous Speed: 1500 rpm
- Weight: ~9.8 kg (typical pump unit)
- Applications: Designed for commercial vehicle tippers and hydraulic systems—trucks, trailers, construction plant
Popular Kit/Part References:
- Edbro PBA090 series
- Edbro EGP090 gear pump series
- Related: Edbro EBA09041B (bi-rotational variant), EBA09022R, EGP090250R
Summary Table:
| Features | Value |
|---|---|
| Displacement | 90 cc/rev |
| Max Pressure | 300 bar |
| Oil Flow at 1000rpm | 90 l/min |
| Rotation Direction | Clockwise/Bi-directional |
| Shaft Type | DIN 5462 |
| Mounting Flange | ISO 7653, 4-hole, 80mm |
