Description

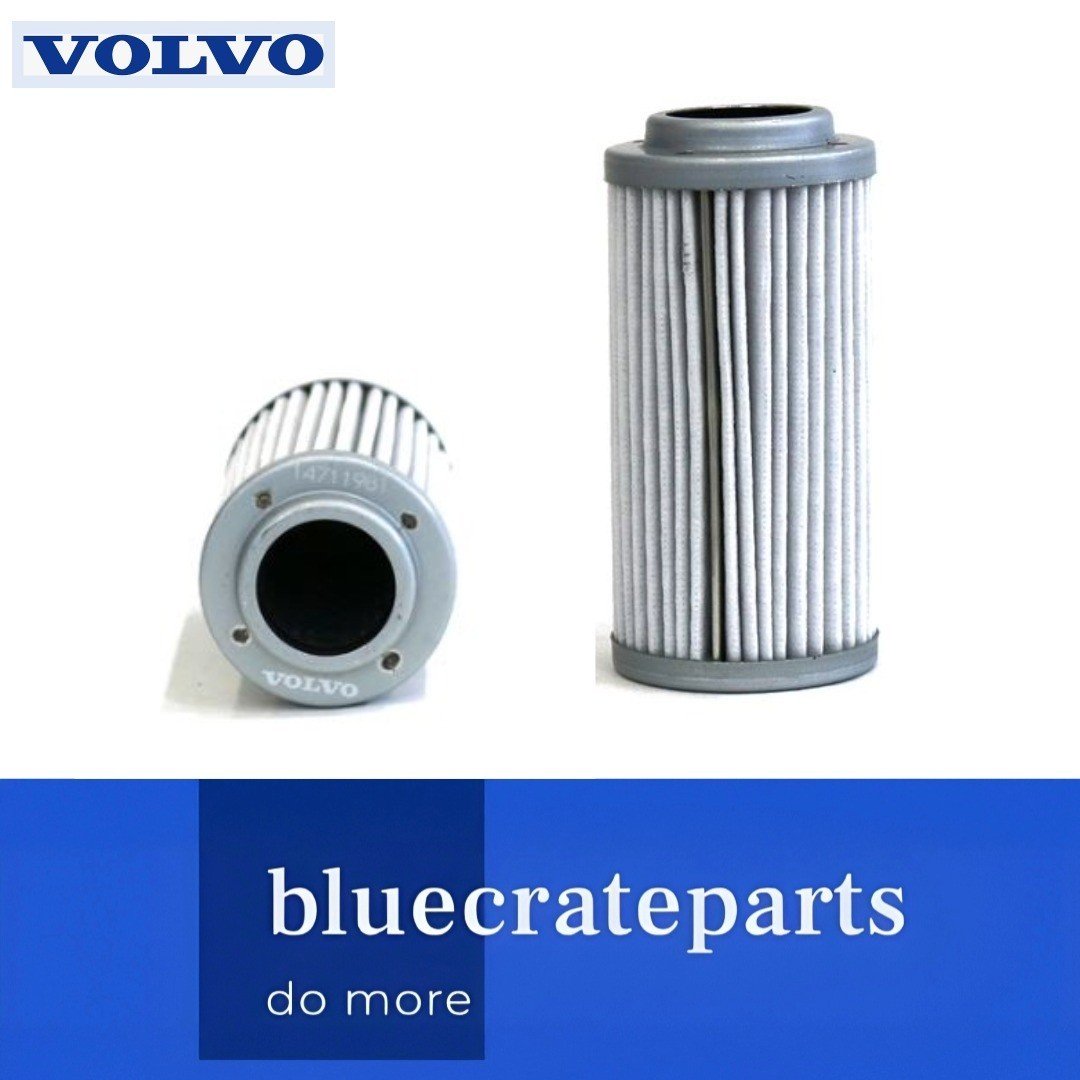

Genuine OEM Quality VOLVO 14711981 Hydraulic Servo Filter Element.
The Volvo 14711981 (also catalogued as VOE14711981) is a high-precision hydraulic pilot filter element (or hydraulic servo filter). It is predominantly used in heavy construction machinery, such as Volvo compact excavators (including the ECR58 and ECR88) and articulated dump trucks like the A25F. This filter purifies the oil flowing into the pilot control circuits, ensuring the joysticks and control valves function smoothly without sticking.
Specification:
- Filter Type: Filter element insert.
- Outer Diameter: 42.5 mm to 43 mm.
- Inner Diameter: 21.5 mm to 22 mm.
- Overall Length/Height: 84 mm to 86 mm.
- Filter Media: High-grade synthetic material.
- Performance Rating: Filtration efficiency beta value is 20 for 9 microns, and 75 for 11 microns, with a collapse burst rating of approximately 6.9 bar.
Compatible with :
1. Crawler Excavators (EC Series)
It fits almost the entire modern line-up of tracked excavators, spanning across C, D, and E generations:
- Small / Medium: EC140C, EC140D, EC140E, EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E
- Heavy Production: EC210C, EC220D, EC220E, EC235C, EC235D, EC240C, EC250D, EC250E, EC290C, EC300D, EC300E
- Mass Excavation: EC330C, EC340D, EC350D, EC350E, EC360C, EC380D, EC380E, EC460C, EC480D, EC480E, EC700C, EC750D, EC750E
2. Short-Swing Radius Excavators (ECR Series)
- Compact / Midi: ECR58D, ECR88D
- Full Size: ECR145C, ECR145D, ECR145E, ECR235C, ECR235D, ECR235E, ECR305C, ECR355E
3. Compact & Wheeled Excavators (EW / EC Series)
- Minis: EC55C, EC55D, EC60C, EC60E, EC65F, EC80D
- Wheeled: EW140E, EW145B, EW205D, EW205E
4. Specialised Piping & Forestry Equipment
- Pipelayers: PL3005D, PL3005E, PL4608, PL4611, PL4809D, PL4809E
- Forestry Carriers: FC2121C, FC2421C, FC2924C, FC3329C
May fit other models, please check OEM number below. If unsure, please contact us!
VOLVO : 14711981
Equivalents:
- HiFi Filter – SH 60264
- SF-Filter – HY 9371/2
- Donaldson – P502540
- Baldwin – PT9537-MPG
- MANN-FILTER – HD 5007
- Hengst Filter – EY952H
- Wix Filters – 57321
- Fleetguard – HF35510
- Woodgate – WGH9152
- Sakura Filter – H-24150
- Komatsu OE Replacement – 20Y-62-51691
- Hyundai OE Replacement – 31MH-20320
Please note that recycled packaging boxes and materials may be used when shipping, in order to keep the our environment green!
