Description

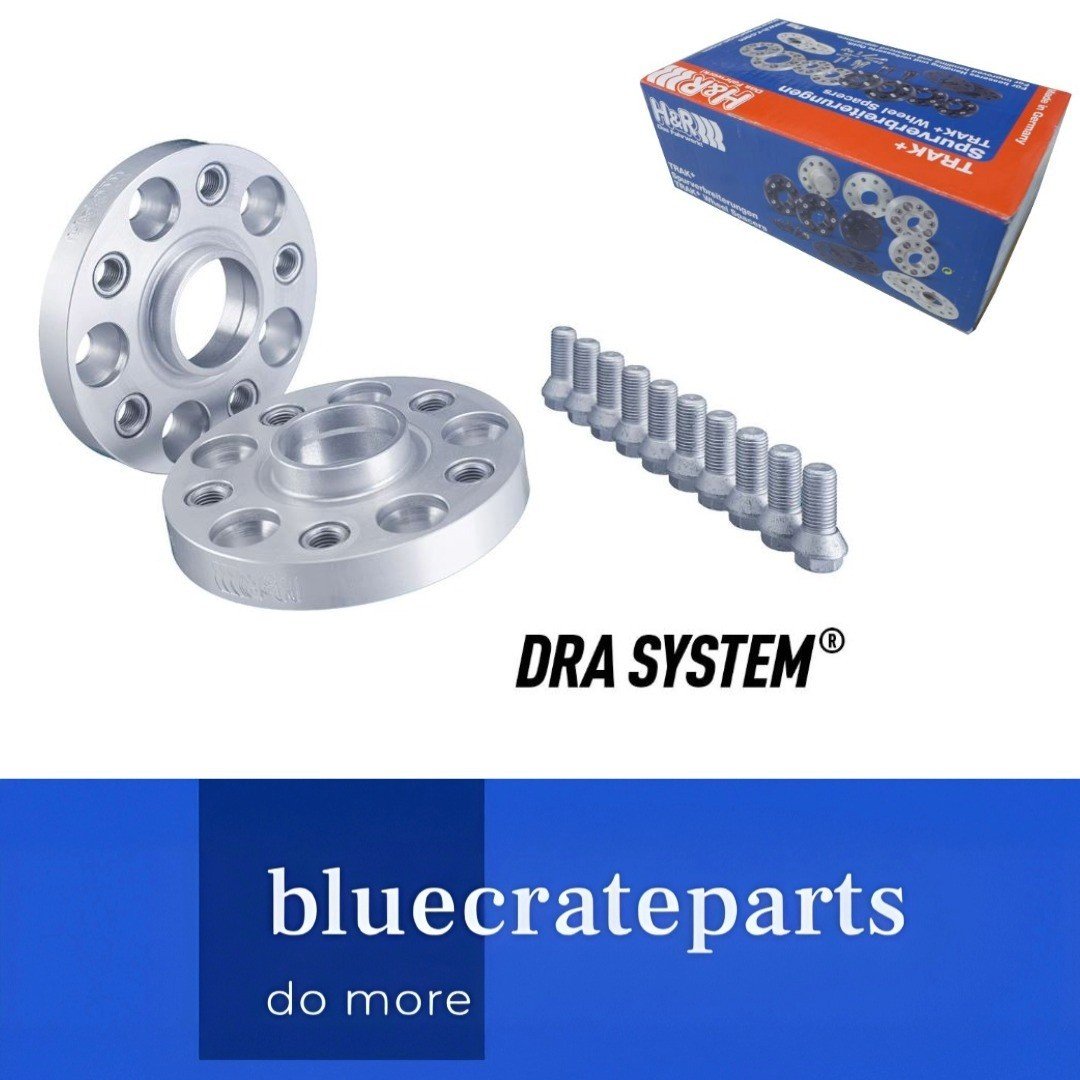

H&R 405256652 TRAK+ DRA Series is a wheel adapter set designed to allow wheels with a 5×100 bolt pattern to be fitted to vehicles with a 5×112 bolt pattern. This 20mm thick hubcentric adapter set is commonly used to adapt Audi/Volkswagen wheels onto Mercedes-Benz or newer Audi/VW hubs.
Product Specifications
The technical specifications for this part are:
- Thickness: 20mm per side, providing a total track widening of 40mm per axle.
- Vehicle Side (Hub): 5×112 bolt pattern with a 66.5mm centre bore.
- Wheel Side: 5×100 bolt pattern with a 57.1mm centre bore.
- Thread Pitch: M12 x 1.5 for the vehicle side and M14 x 1.5 for the wheel adapter.
- Material: Manufactured from a proprietary high-tensile strength aluminium/magnesium alloy that is up to 70% lighter than steel.
- Finish: Hard anodised silver for corrosion resistance and surface hardness.
Key Features and Performance
- Hubcentric Design: These adapters feature a hubcentric design with a full-contact hub to ensure even load distribution and vibration-free operation.
- Improved Handling: By widening the vehicle’s track, these adapters lower the roll centre and increase lateral stability, which can improve overall handling and cornering confidence.
- Aggressive Stance: They are designed to move wheels outward to be flush with the fender, providing a more aggressive “street stance”.
- DRA System: This specific system involves bolting the adapter to the hub with special screws (included) and then attaching the wheel to the adapter using existing wheel bolts.
Free postage for UK Mainland ONLY! For other regions please contact for a quote, before buying!
Please note that recycled packaging boxes and materials may be used when shipping, in order to keep the our environment green!
